High Quality ESD Belt PCB Destacker Bare Board Loader for SMT PCB Assembly Line

Name: High Quality ESD Belt PCB Destacker Bare Board Loader for SMT PCB Assembly Line
Brand: HSTECH
Price: 1 USD

Brand Name : HSTECH

Model Number : HS-DS400

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7~9 work days

Packaging Details : Wooden package,with foam

Product Name : PCB Destacker

Other Name : Bare Board Loader

Power Supply : AC110V/220V,single Phase

Program : PLC

PLC Brand : Mitsubishi

Air Pressure : 0.6Mpa

PCB Thickness : 0.6~4.0mm

Warranty : 1 Year

High Light : Mitsubishi PLC PCB Destacker,0.05kW PCB Destacker,20L/Min PCB Bare Board Loader

Contact Now

High Quality ESD Belt PCB Destacker Bare Board Loader for SMT Line

Features:

1. Mitsubishi PLC program control.

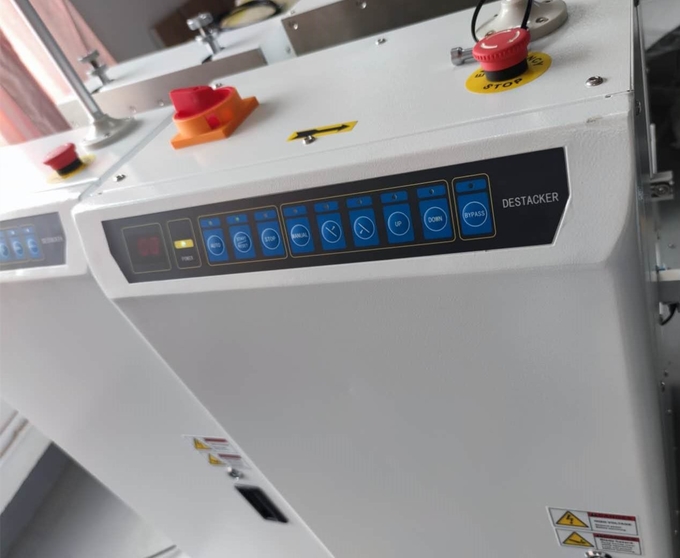

2. Easy and smart button control.

3. Manual PCB thickness adjustment.

4. Hand crank PCB width adjustment.

5. 3 color light display for machine status.

6. Aluminium structure, heavy bottom design to prevent shift.
7. Pass-through mode provided.
8. Only taken 10 seconds to change product line.
9. Uninterrupted Loading.

10. ESD transporting belt.
11. Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door

12. SMEMA compatible.

Application:

This machine used for loading bare PCB to smt line after received down-stream machine signal.

Specification:

Function	Used for loading bare PCB to smt line after received down-stream machine signal.
Transport height	910±30mm
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side
PCB thickness	0.6~4.0mm
PCB components height	±35mm
PCB feeding time	Approx. 10 seconds or Specify
Board weight	≤3KG
Power supply	220V,50/60Hz,±10%
Power	0.05kW
Air pressure	0.6Mpa
Air consumption	<20L/min
Signal	SMEMA

Model	HS-DS400	HS-DS530
Efficient PCB length	50~400mm	50~530mm
Transport PCB width	50~400mm	50~500mm
PCB thickness	Min 0.6mm	Min 1.0mm
Machine dimension	5037701200mm	6009201200mm
Weight	110kg	130kg

Product Details:

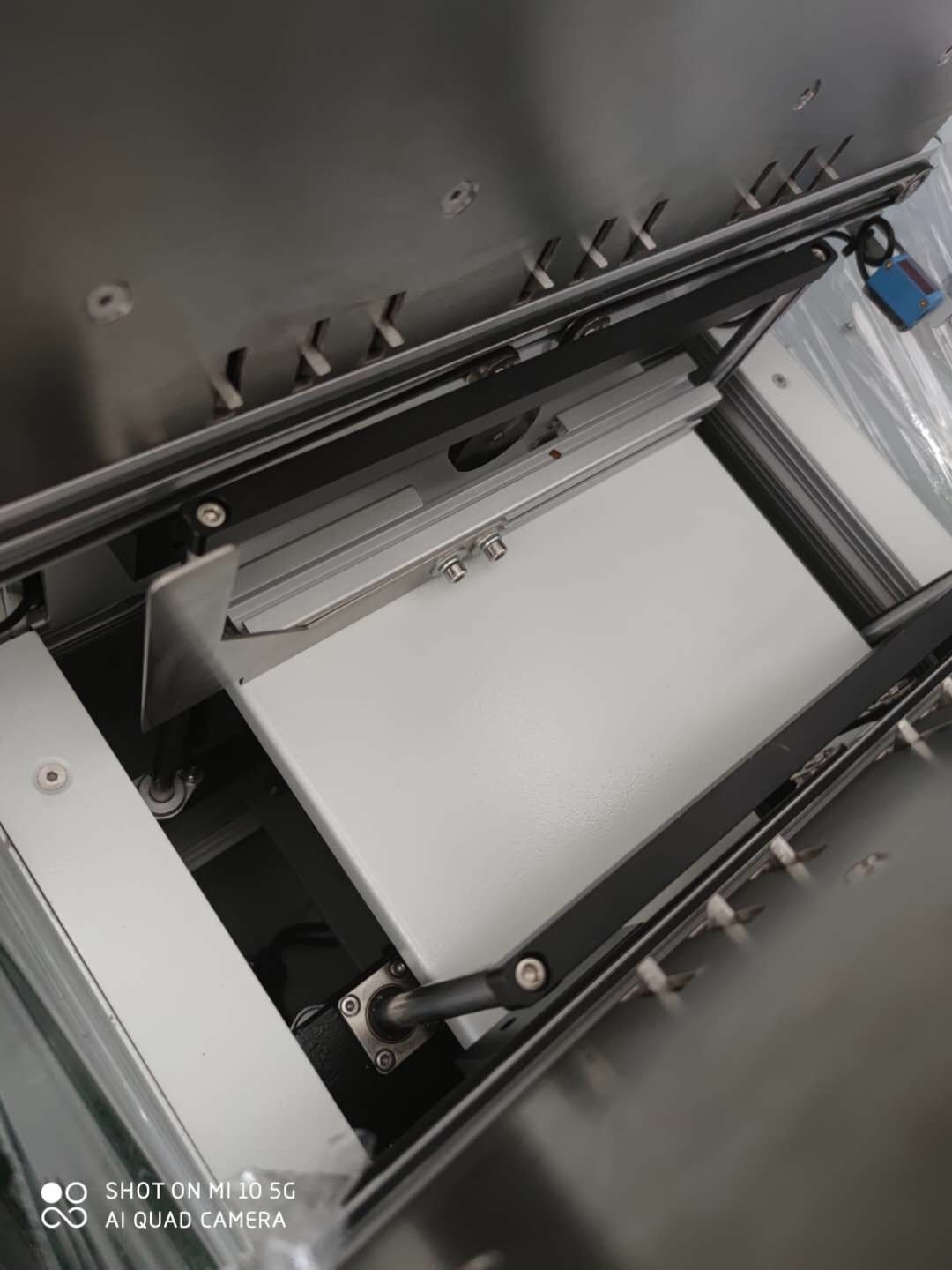

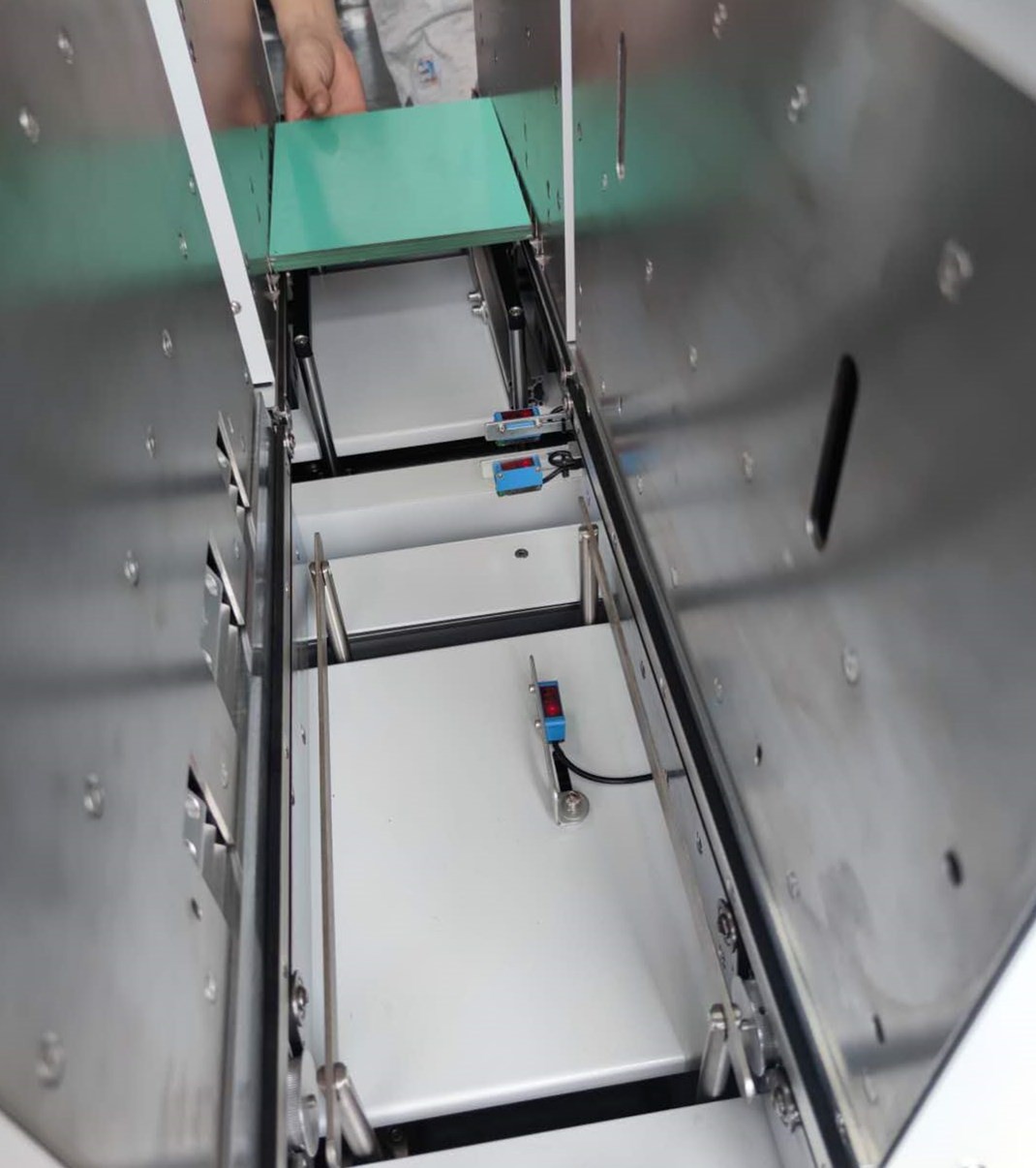

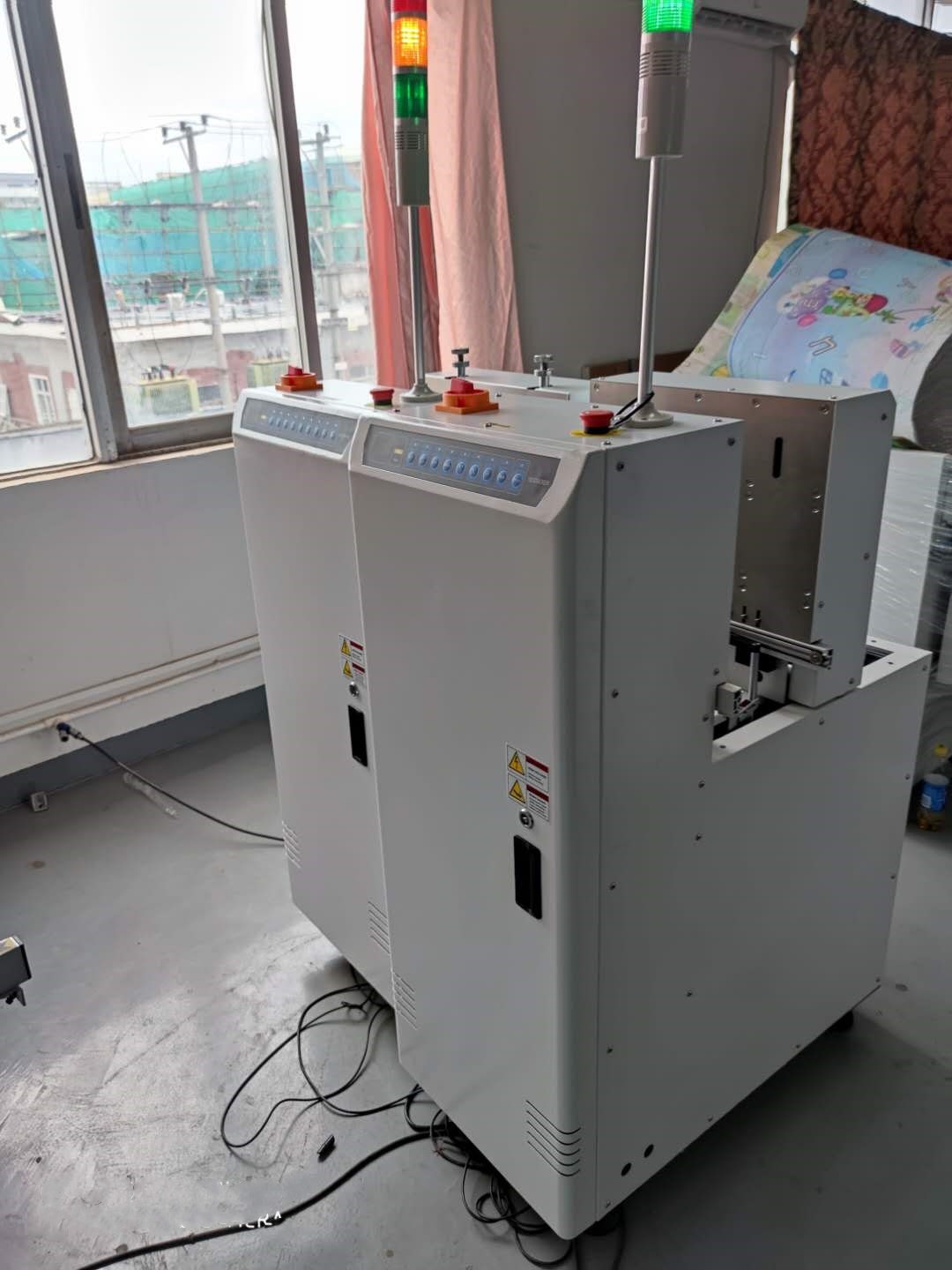

High Quality ESD Belt PCB Destacker Bare Board Loader for SMT PCB Assembly Line

High Quality ESD Belt PCB Destacker Bare Board Loader for SMT PCB Assembly Line

High Quality ESD Belt PCB Destacker Bare Board Loader for SMT PCB Assembly Line Images
