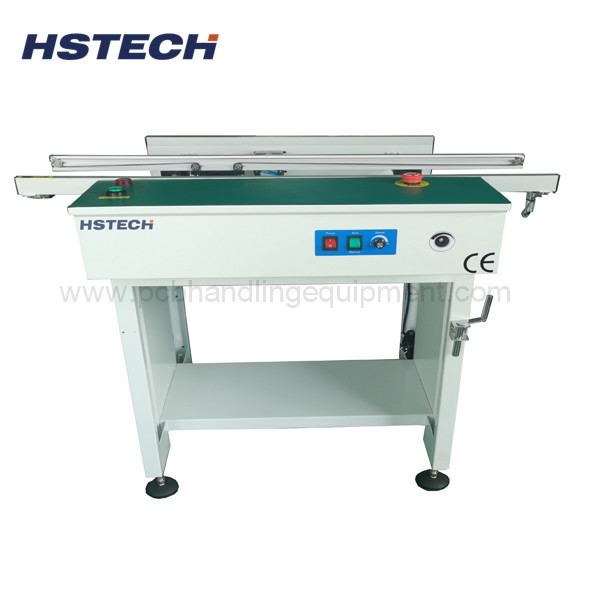

Name: LED Button Manual Hand Crank Width Adjustment ESD Belt PCB Transporting Conveyor
Brand: HSTECH
Price: 1 USD

Brand Name : HSTECH

Model Number : HS-460-CY

Certification : CE

Place of Origin : China

MOQ : 3 sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P

Supply Ability : 500 pcs per month

Delivery Time : 10~14 days

Packaging Details : Wooden box

Product name : SMT Conveyor

Other name : Link Conveyor

Color : Blue,Grey,white

Transport belt : ESD flat belt

Belt thickness : 1.0 mm

Voltage : 1P AC 110V/220V 50/60HZ

Warranty : 1 Year

Packing : Wrap, wooden box

Contact Now

LED Button Manual Hand Crank Width Adjustment ESD Belt PCB Transporting Conveyor

Features

1, Stable stainless steel structure.

2, Hand crand width adjust.

3, Black transpoting belt, 1.0mm thickness.

4, Aluminum alloy transporting rail.

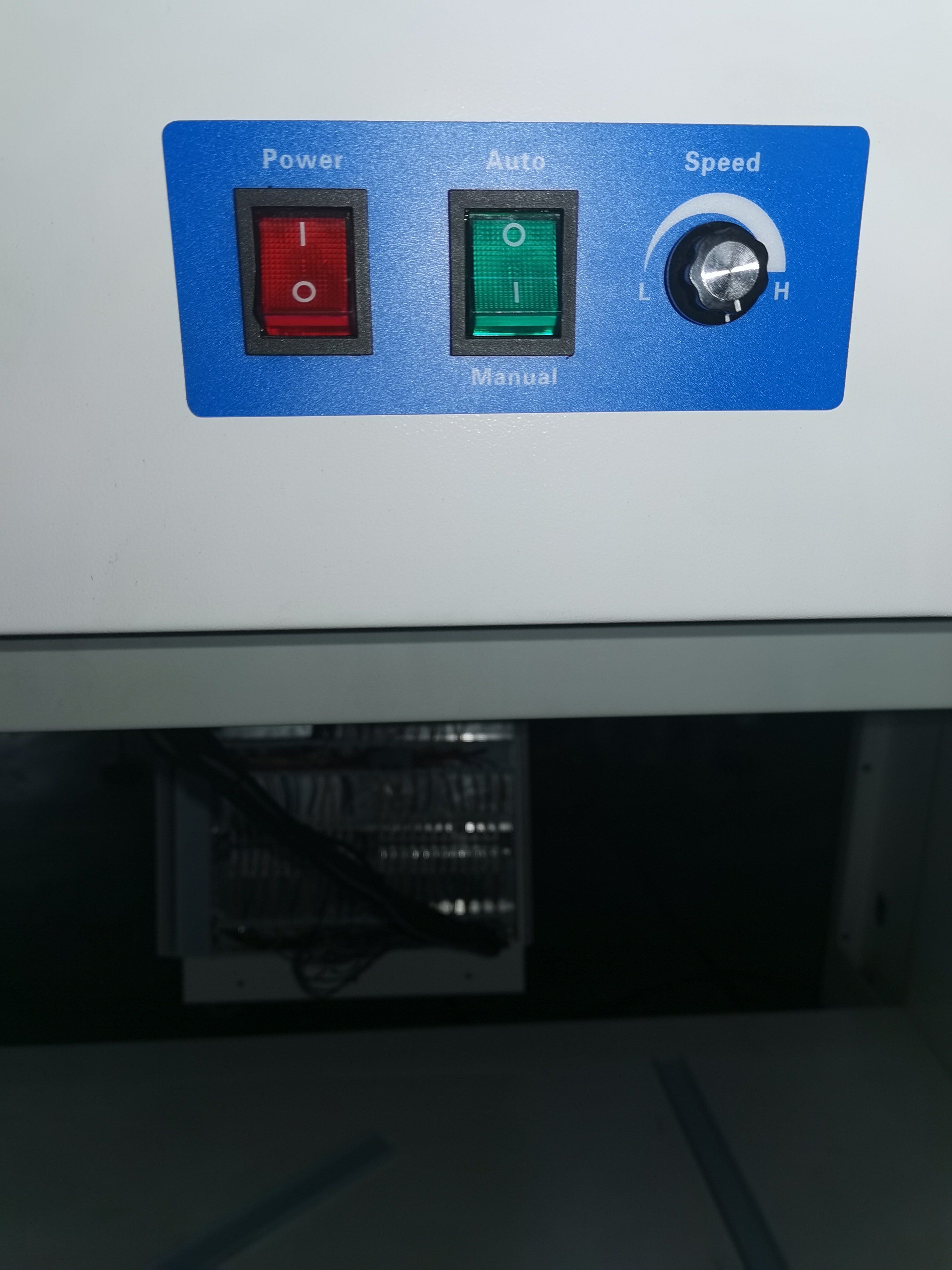

5, LED button control, speed adjustment motor.

6, Optional function available, tower light, inspection, dust cover, etc.

7, Customized requirement available.

8, Length available, 600mm, 1000mm, 1500mm, or optional.

9, SMEMA signal for inline connection.

Specification

Model		HS-C600/HS-C1000
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection
