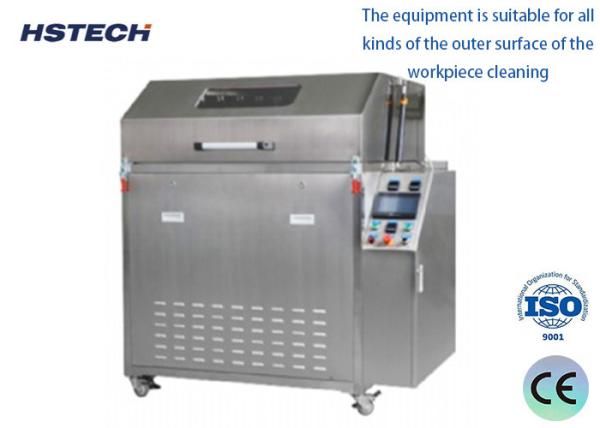

SUS304 Stainless Steel SMT Cleaning Equipment with Emergency Stop Button
Introduction
This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.
Features
1. SUS304 stainless steel structure, the whole machine welded, durable, acid and alkali corrosion resistance, beautiful
appearance.
2.1 m diameter cleaning basket, placing multiple pieces of fixture at one time, to achieve batch cleaning.
3. Above, below, front spray rod, rotating cleaning basket, all-round coverage, cleaning completely without dead corners.
4. The cleaning solution completely penetrates into the bottom of the fixture and is cleaned thoroughly.
5.PLC program control, touch screen operation, cleaning parameters can be set and modified as required.
6. One-click simple operation, high pressure cleaning + high pressure rinsing + hot air drying process is automatically completed.
7. Clean liquid heating and insulation functions.
8. The cleaning solution and bleaching solution are recycled and filtered in the machine to save the solution and reduce the use cost.
9. The standard is equipped with the function of automatic adding and discharging bleaching liquid.
10. After cleaning, the fixture surface is clean, dry, ready to use.
Specification
| Model |
HS-600 |
| Product name |
Screen printer stencil cleaner |
| Machine metarial |
Stainless steel, anti-fire, explosion-proof |
| Power |
Pneumatic |
| Application |
Stencil,cooper screen,gule screen |
| Stencil size |
standard 29inch and below |
| Cleaning solvent |
Alcohol |
| Cleaning liquid capacity |
Max 45L,Min20L |
| Best cleaning fluid using volume |
40L |
| Liquid consumption |
120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air
|
| Cleaning time |
2~4 Min |
| Drying time |
2~5 Min |
| External air supply |
0.4Mpa~0.6Mpa |
| Consumer air quantity |
400~600L/Min |
| Air outlet size |
φ125*25mm |
| Solder dross filter mode |
3 level filter(10um,5um,1um) |
| Weight |
250kg |
| Machine dimension |
980MM(L)*700MM(W)*1730MM(H) |
|
|
