Product Name : Inline THT DIP AOI After Wave Soldering
Warranty : 1 Year
Control : Touch screen
PLC : MITSUBISHI
Relay Brand : Schneider
Optoelectronic Switch : OMRON
Material : Aluminum Alloy
Condition : New
Thickness : 0.3 - 5mm
Signal : SMEMA
Application : Electronic Assembly
Color : Silver
Control System : PLC
OEM/ODM : Available
Total power : 2600W
Power Supply : AC220V
Air Pressure : 4-6bar
Mounting accuracy : ±0.01mm
Type : Automatic
Weight : 30KG
Quick Installation Fast Inspection Speed Remote Assistant Inline THT DIP AOI Before Wave Soldering
Specification
Model | AIS300 | AIS301 |
PCB Size | 50x50mm~430x380mm | 50x50mm~350x350mm |
Thickness | 0.3~7.0mm | |
Warping extent | <4mm | |
Component height | Top 150mm, bottom 25mm | |
Camera | 5MP,color,CCD | |
Light source | RGB | |
FOV | 45*37mm | |
Resolution | 20um | |
Inspection | ||

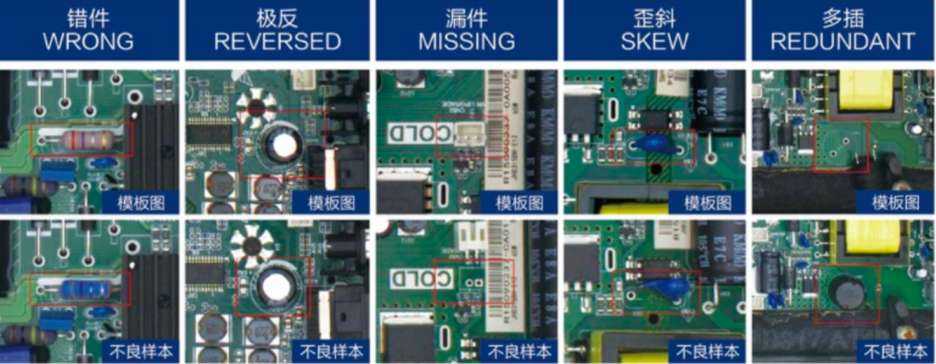

Mounting components defect | Missing,rolling,offset,damage,skew,redundant,dirty. | |
Solder defect | Excess,insufficient,bridge,no foot,missing solder,non-wetting. | |
Other function | Bar-code,QR cod,OCR | |
Speed | 0.23sec/fov | 0.25sec/fov |
Software/Hardware | ||
Operation system | Ubuntu 14.04 LTD 64bit | |
Function | Remote control, Gerber file importing, training tool for new models | |
Industrial PC | CPU intel i5,Independent Graphics Card,12G DDR,256SSD | |
Display | 22 inch FHD LCD | |
Motion | High accuracy linear actuator | |
Power supply | AC220V,1KW | |
Air pressure | >0.5Mpa | |
Dimension(L*H*W) | 1100*1630*1350mm | 1100*1280*1300mm |
Net Weight | 800kg | 700kg |
Features
A. Core Algorithm: Convolutional Neural Network (CNN)
Industrial Applications and Achievements:
B. Elevated Wear Resistance
C. Extensive Inspection Coverage & High Adaptability
D. Optimized Inspection Speed & Minimal Error Rates
E. Marble Base for Stabilization
F. Dual XY Linear Actuators
Application
Strategically placed after the wave soldering machine in DIP (Dual In-line Package) production lines, this inline THT (Through-Hole Technology) AOI (Automated Optical Inspection) system occupies a crucial position. Its main responsibility is to detect and rectify improperly assembled units, thereby drastically cutting down the necessity for subsequent repairs and minimizing production interruptions. As a result, it significantly boosts the overall production output. This adaptable equipment is widely utilized for inspecting a diverse range of PCBAs (Printed Circuit Board Assemblies), encompassing TV mainboards, PC mainboards, power supply units, industrial control boards, small household electronic appliances, and numerous other types.
